The Original Shower Bench Bracket®
Invisible Support for Floating Shower Benches
The Original Shower Bench Bracket® is the perfect concealed support for floating benches or seats in moisture-prone environments like bathrooms and showers. Crafted from Industrial Ribbed Aluminum, this bracket is designed to provide durable, rust-proof support, making it ideal for both interior and exterior installations.
This bracket mounts directly to 2x4 wood studs within your wall before installing drywall or tile. For maximum stability, ensure the bracket is securely fastened to each 2x4 stud. If your studs are metal, please refer to the installation video for special instructions.
Note: This bracket is designed to support overhangs ranging from 18 to 26 inches.
The vertical tang of the bracket adds reinforcement by mounting both above and below the horizontal piece, preventing twisting. Once installed, you can finish your wall with the material of your choice, leaving the bracket virtually invisible.
How to Choose the Right Bracket Size:
When determining the length, measure the horizontal piece from tip to tip, remembering that approximately 3 inches will be inside the wall. For example, if you have a 24-inch vanity, you would select a 24-inch bracket—3 inches will be secured inside the wall, leaving 21 inches for the overhang and a 3-inch allowance for the vanity placement.
For detailed installation instructions, refer to our Installation Guide for The Original Shower Bench Bracket®.

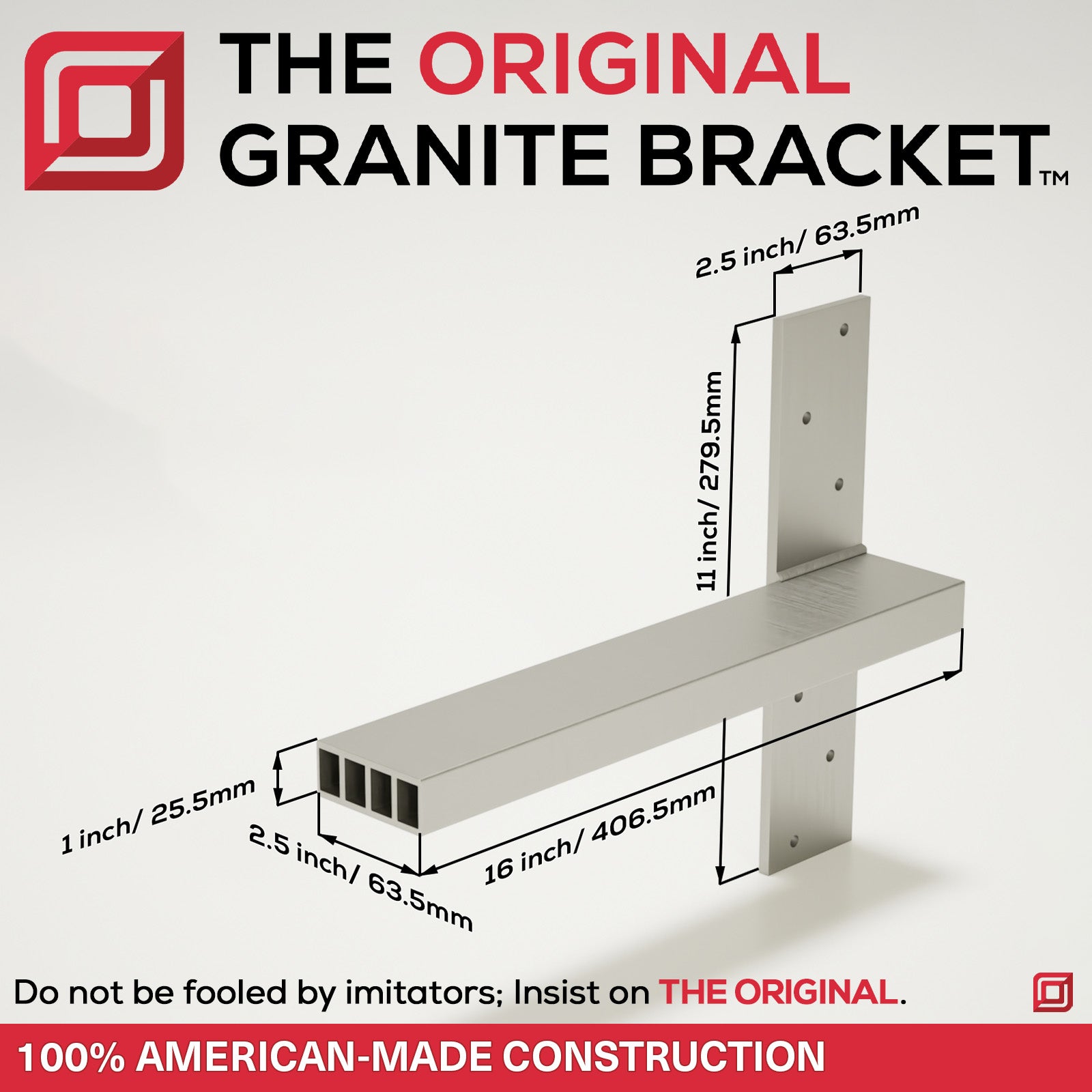

Dimensions:
- Horizontal Piece Length: [Select in listing] (Total length from tip to tip; 3 inches will be hidden inside the wall)
- Width: 2 ½ inches
- Thickness: 1 inch
Dimensions:
- Vertical Length: 11 inches (5.25 inches above and 5.25 inches below the horizontal piece)
- Width: 2 ½ inches
- Thickness: ¼ inch
- Hole Diameter: ¼ inch (3 screw holes above and 3 below the horizontal piece)
Exceptional Features:
- Hardware Included
- Made from Industrial Ribbed Aluminum – Rust-proof and perfect for moist environments
- Virtually invisible, creating a floating appearance for your bench, vanity, or mantel
- Ideal for exterior use and overhangs such as countertops
- Easy to install with screw holes on top and bottom of the vertical tang
- Constructed from 1-inch-thick by 2 ½-inch-wide American Ribbed Industrial Aluminum
- Finished with matte black paint, though it can be repainted with anti-rust spray if needed
- Welded for maximum strength
- Made in the USA
- Limited Lifetime Warranty**
- Patented - No. D1, 022, 6825
Helpful Information & Downloads:
- We offer Free Ground Shipping to the lower 48 states and Canada! Shipping information will be available upon order placement.
- For orders exceeding 20 brackets or a general breakdown of how our shipping works check out our Shipping Policy for lead time.
- Although we have standard sizes, we can manufacture special order brackets with specifications to your request.
Have questions or need assistance? Contact our dedicated customer service team at 888-584-1112 EX 1 or email joe@originalgranitebracket.com
